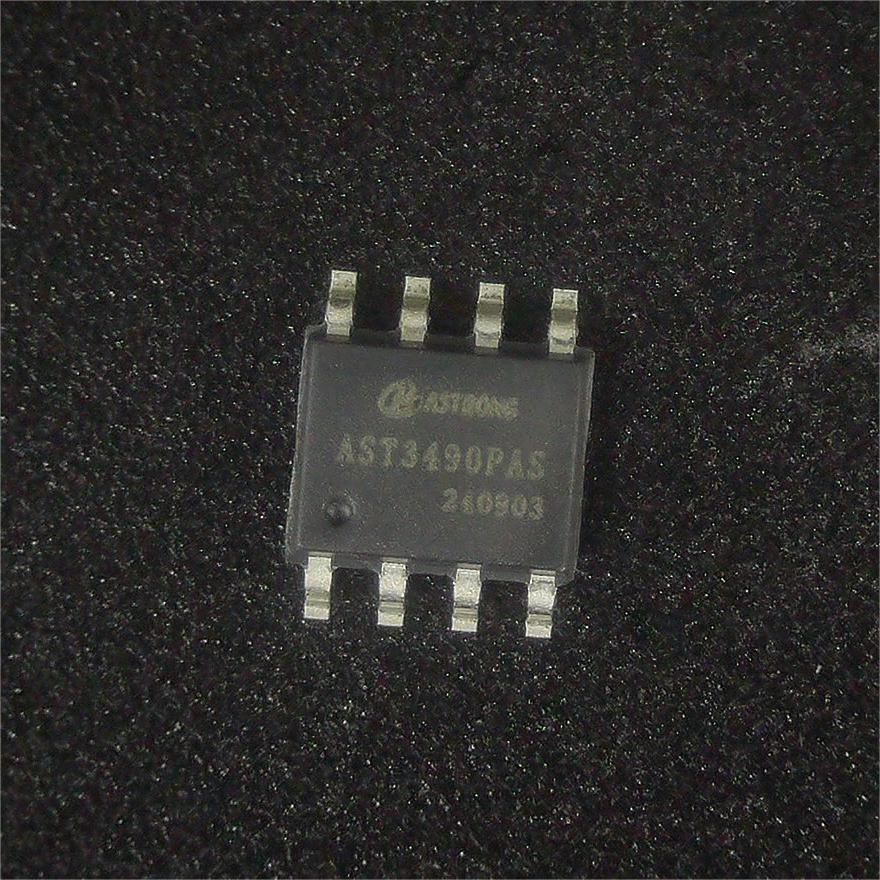

AST3490xAS Series High-Speed Serial Bus Circuit
AST3490xAS Series High-Speed Serial Bus Circuit
Features
-
Operating voltage: 3.3±10 per cent
Input high level voltage: ≥2.0V
Input low level voltage: ≤0.8V
Output high level voltage: ≥2.4V
Output low level voltage: ≤0.4V
Driver differential output delay: ≤35ns
Driver differential output conversion time: ≤25ns
Receiver transmission delay: ≤90ns
Receiver transmission delay swing rate: ≤10ns
Maximum transmission rate: 10Mbps
Operating current: 5mA
ESD: 2000V
Operating temperature: -55℃~105
Quality grade: meet the GJB 597B-2012 class B, GJB 7400-2011 class N1
Compatible with MAXIM's MAX3490ESA
Partial parameters
-
Operating temperature range：-55℃～105℃
Storage Temperature Range: -65℃～150℃
