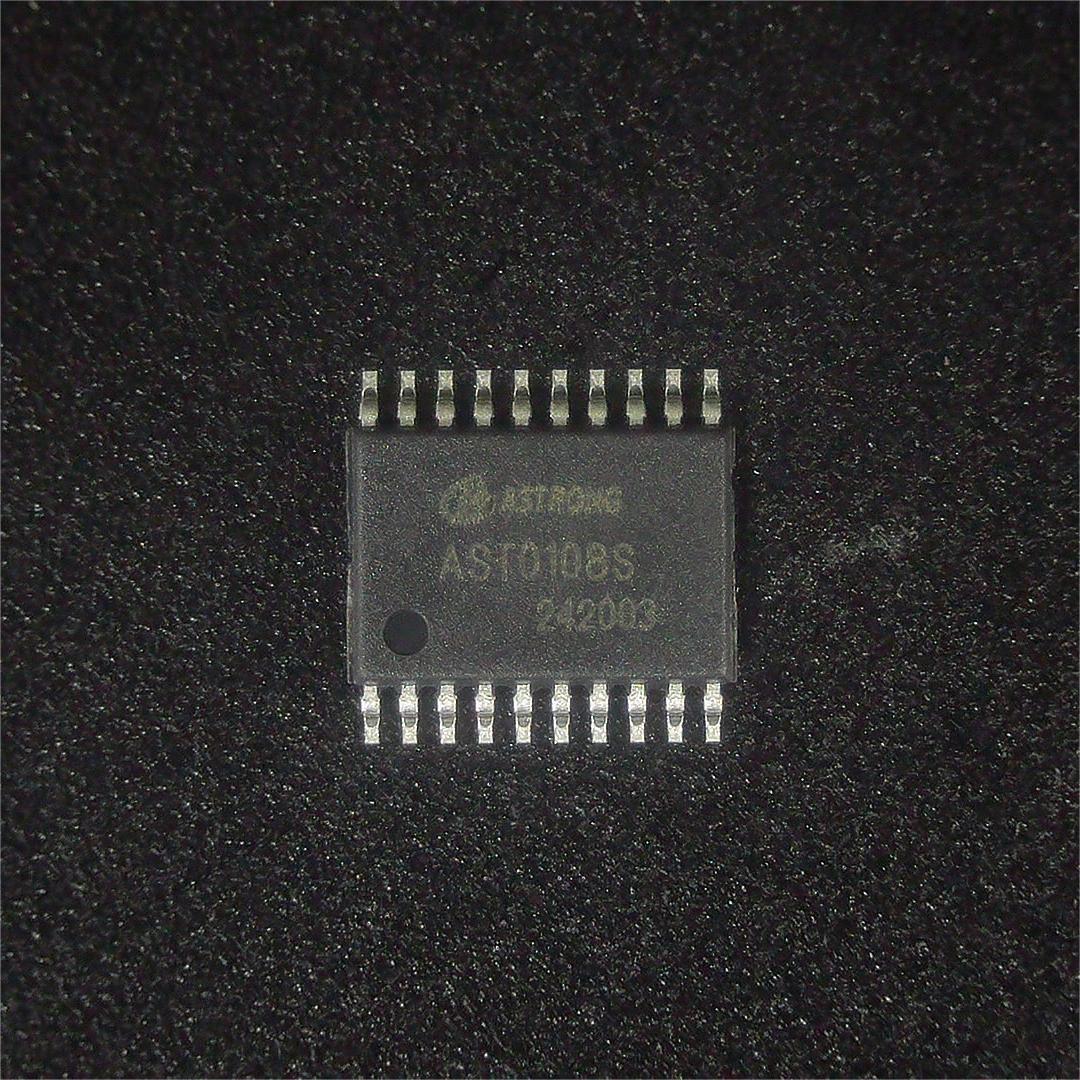

AST0108S Type 8-Bit Bidirectional Voltage Converter Circuit
AST0108S Type 8-Bit Bidirectional Voltage Converter Circuit
Features
-
No direction control signal required
Maximum data rate
-60Mbps (push-pull)
-1.2Mbps (open-drain)
Port A 1.4V to 3.6V; Port B 1.65V to 5.5V (VCCA ≤ VCCB )
No power sequencing required - either VCCA or VCCB can be powered up first
Quality level: Refer to GJB7400 "General Specification for Semiconductor Integrated Circuits for Qualified Manufacturing Facility Certification", Level N1 requirements.
AST0108S is compatible with TI's TXS0108EPWR chip.
Partial parameters
-
Operating Temperature Range: -55℃~125
Storage Temperature Range: -65°C to 150°C
Maximum Junction Temperature: 150°C
