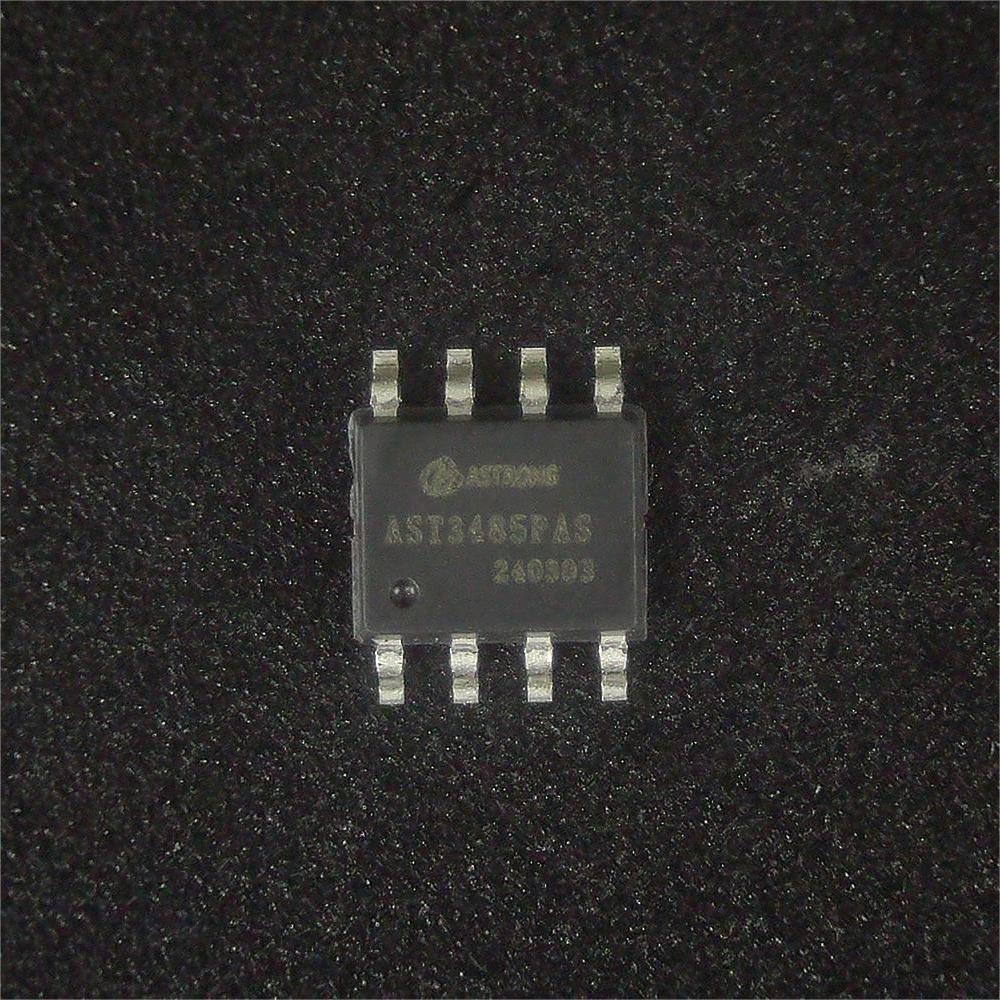

AST3485PAS RS-485/422 Signal Transceiver

首页 > Products > Logic Interface and Driver >

AST3485PAS RS-485/422 Signal Transceiver


Features





    Pin-to-pin compatible with MAX3485ESA
    Operating voltage: 3.3V±0.3V
    Maximum transmission rate: 10Mbps
    Driver output differential voltage: ≥1.5V
    Receiver threshold voltage: ±200mV
    Input high level voltage: 2.0V
    Input low level voltage: 0.8V
    Output high level voltage: 2.4V
    Output low level voltage: 0.4V
    Driver differential output delay: ≤35ns
    Receiver transmission delay: ≤90ns
    Supply current: 3mA
    Package: Plastic SOP8
    Humidity sensitivity level: Level 3



Partial parameters





    Operating Temperature Range: -55℃～125
    Storage temperature range: -65℃～150℃
