Features




Single inductor construction allows input voltage to be above, below or equal to output voltage
Wide input voltage range: 4.5V to 36V
Wide output voltage range: 0.8V to 34V
Output current: 4A DC (10A DC in buck mode)
Up to 98% efficiency
Current mode control
Includes Power Good output signal
Phase can be locked to a fixed frequency: 200kHz to 400kHz
Extremely fast transient response
Current feedback protection
Output overvoltage protection

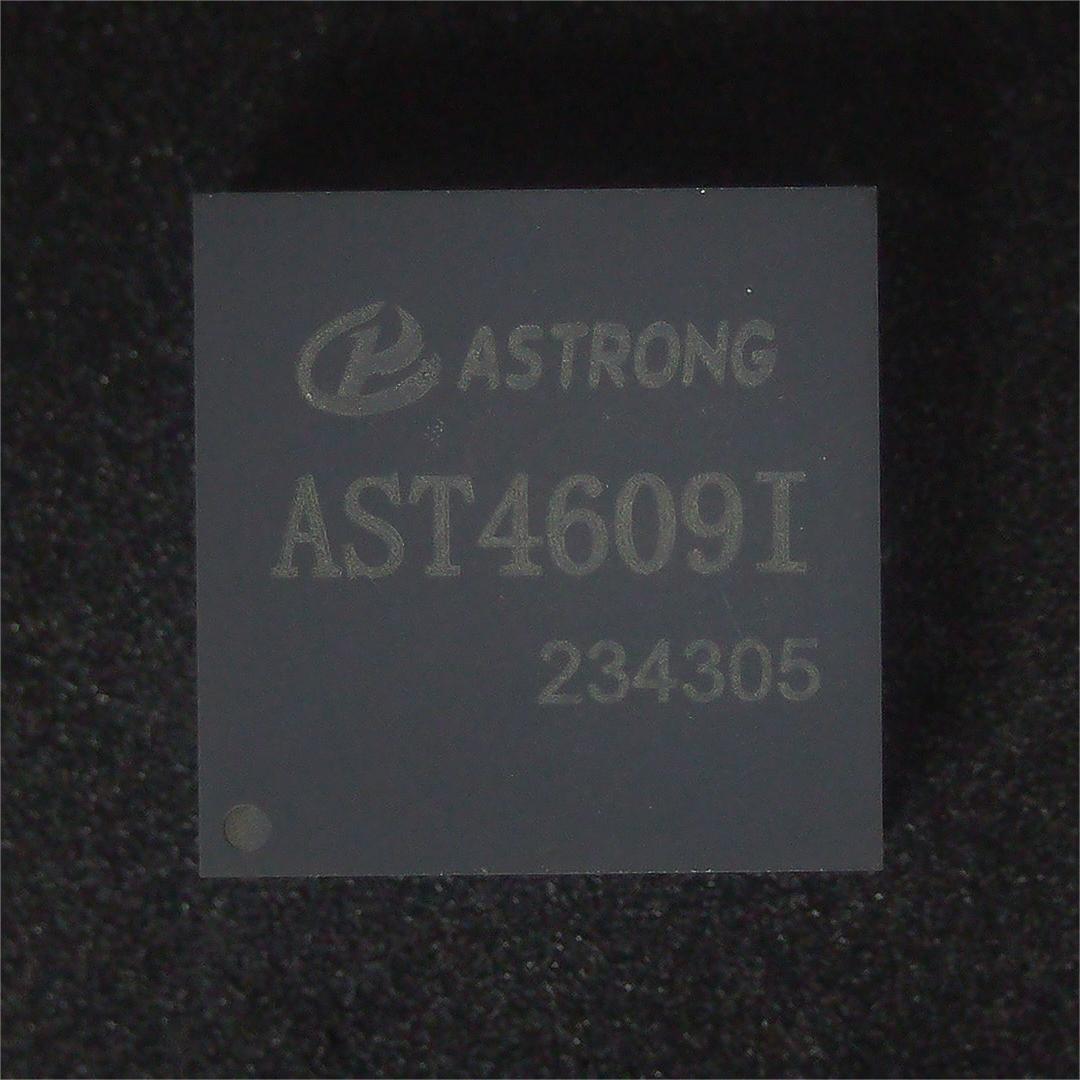

15mm × 15mm × 6.6mm BGA package and 15mm × 15mm × 6mm LGA package

Applications



Suitable for applications such as telecommunications, servers, network equipment, industrial and automotive equipment, and high-power battery-powered equipment.
•




Partial parameters





Operating Temperature Range: -55°C to 125°C
Storage Temperature Range: -55°C to 125°C
Reflow peak: 220°C
