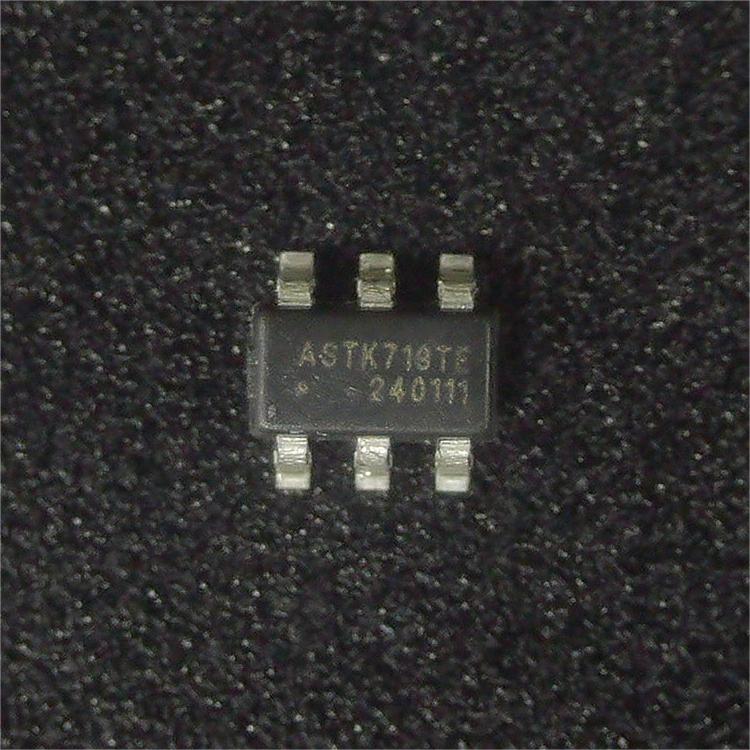

ASTK719 Type High-Speed SPDT Analog Switch

首页 > Products > Analog Signal Chain >

ASTK719 Type High-Speed SPDT Analog Switch


Features




    Power supply range: single power supply 2.5V~5.5V
    Dual-channel single-pole double-throw: SPDT×1
    Low on-resistance: 4 Ω
    On-resistance flatness: 0.75 Ω
    -3dB wideband: >100 MHz
    Typical power consumption: <0.01 uW
    Fast switching time: Ton = 20 ns
    Toff = 10 ns
    TTL/CMOS level compatible
    Rail-to-rail operation

Applications



      Communication systems
      Sample-and-hold systems
      Battery powered systems
      Audio signal routing systems
      Video switching

Partial parameters




    • Operating Ambient Temperature: -55℃～125℃
      Maximum junction temperature: 150℃
