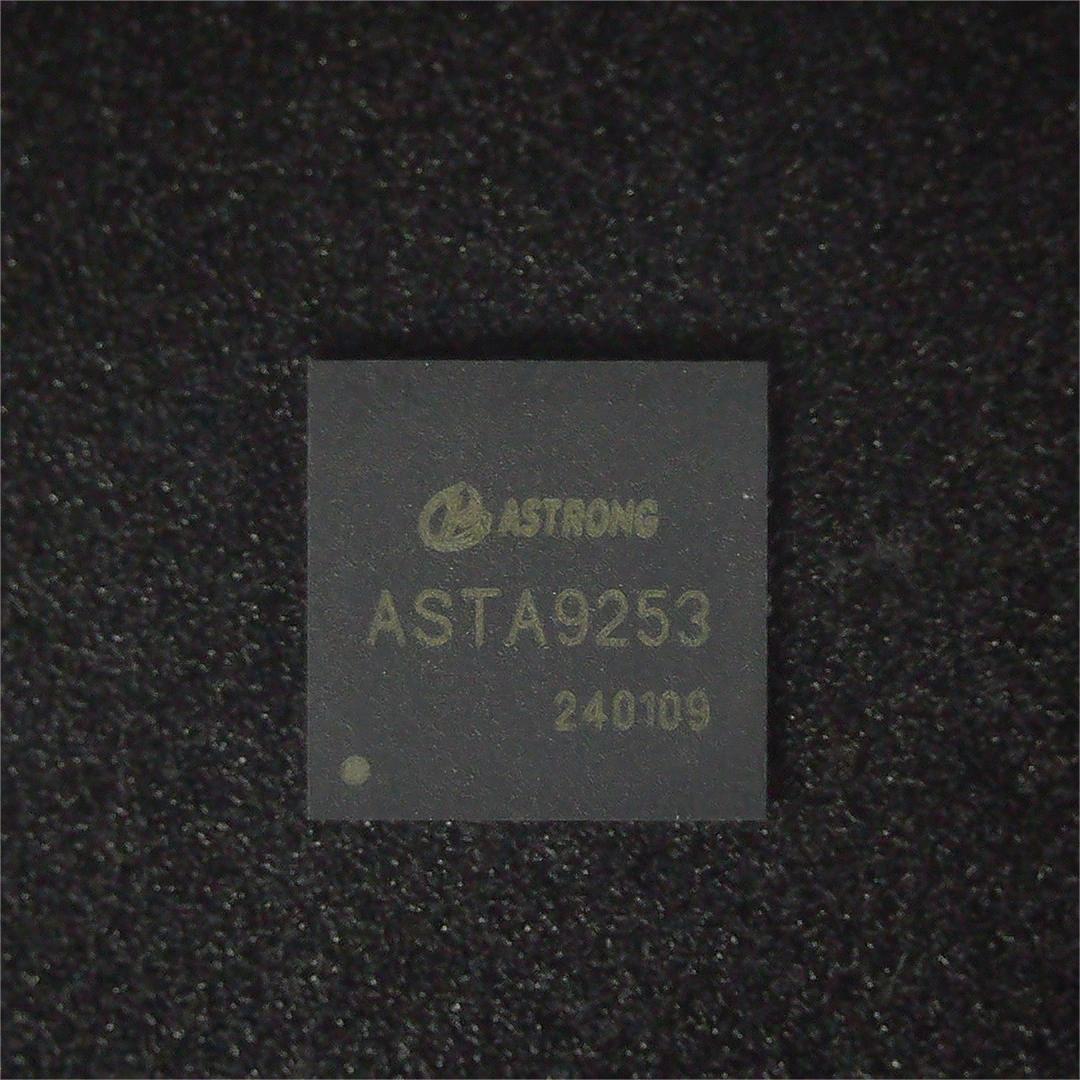

ASTA9253 Four-Channel 14-Bit ADC


Features




    1.8V power supply
    Low power consumption: 110mW per channel (110MSps)
    Signal-to-Noise Ratio (SNR): 73dB (to Nyquist frequency)
    Differential non-linearity (DNL): ±0.75 LSB (typical)
    Integral Nonlinearity (INL): ±2.5LSB (typical)
    Serial LVDS
    2VP-P Input Voltage Range
    QFN-48 package 7mm x 7mm

Applications



      Medical imaging and non-invasive ultrasound testing
      Test equipment
      Radio receivers
      Fibre optic networks

Partial parameters




      Operating temperature range: -40°C to 85°C
      Storage temperature range: -65°C to 150°C
      Maximum junction temperature: 150°C
