Features




Complete buck-boost switch mode power supply
VOUT equal to, greater than, less than VIN
Wide input voltage range: 5V to 36V
6VIN output 12V / 3A
12VIN output 12V / 6A
24VIN output 12V / 8.5A
Efficiency up to 97.5 per cent
Adjustable input and output average current limits
Input and output current monitors
Can be paralleled to increase output current
Wide output voltage range: 1.2V to 36V
Selectable switching frequency: 100kHz to 800kHz
Synchronisation from 200kHz to 700kHz

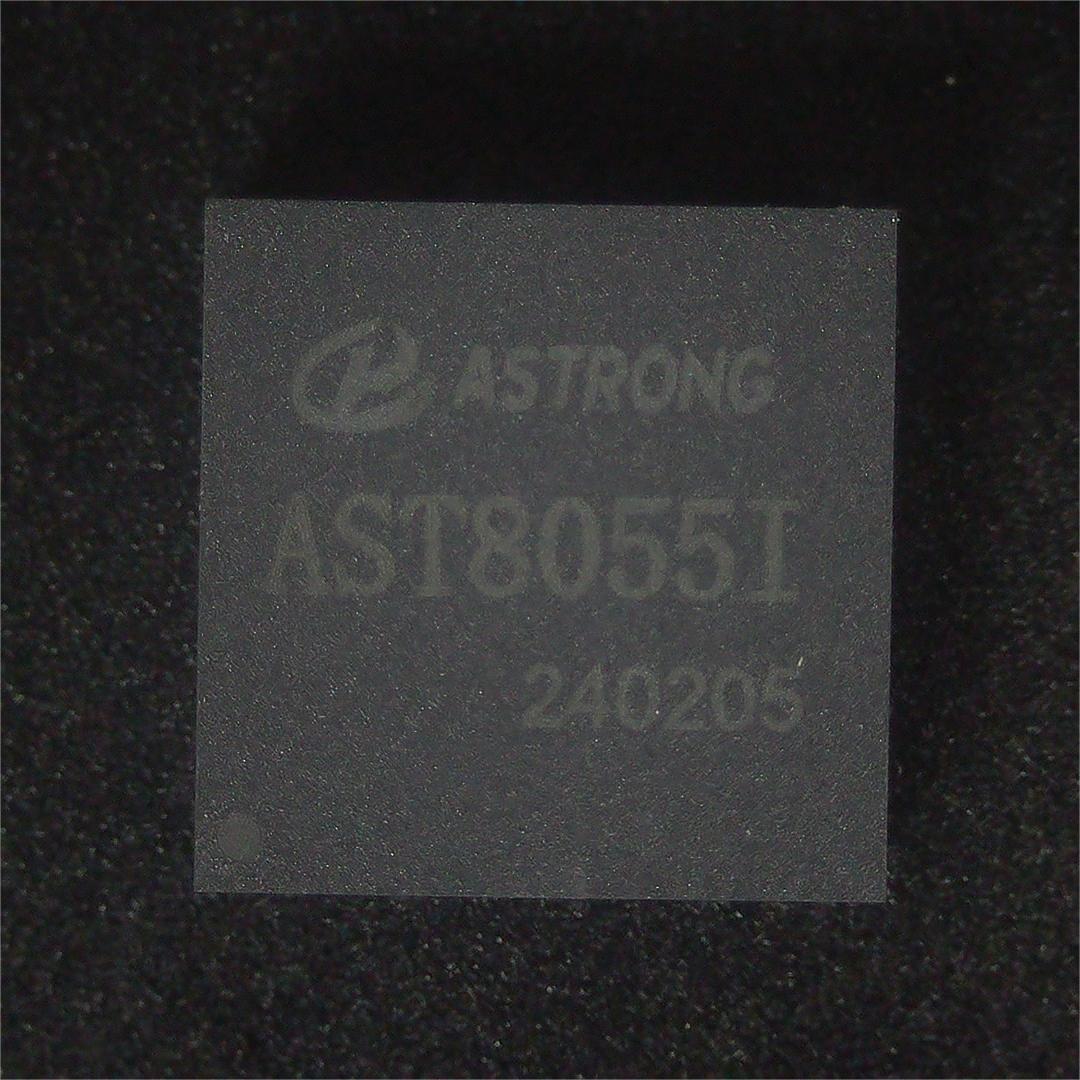

15mm × 15mm × 6.6mm BGA package

Applications



For solar-powered voltage regulators, solar-powered battery charging, industrial controls, high-power battery-powered equipment, and other applications.
•




Partial parameters




Maximum junction temperature: 125°C
Storage temperature: 125°C
Operating temperature: -55°C to 125°C
