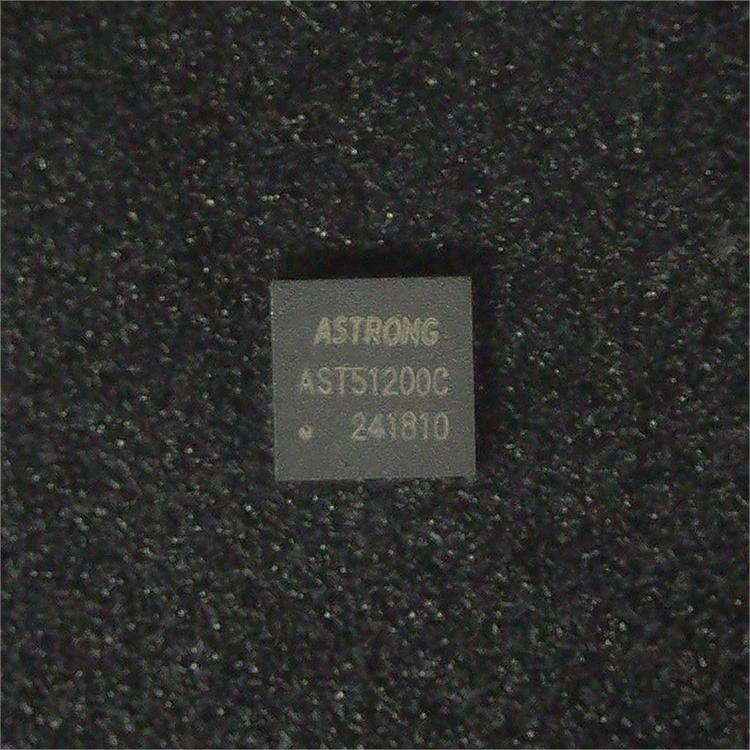

AST51200DRCR Type Linear Regulator (military grade)

首页 > Products > Power and Power Management >

AST51200DRCR Type Linear Regulator (military grade)


Features




    VIN input voltage: supports 2.5V and 3.3V on both rails
    VLDOIN voltage range: 1.1V to 3.5V
    SINK/SOURCE Double-ended regulator
    PGOOD monitoring regulator output
    Uses far-end detection (VOSNS)
    EN enable input
    REFIN supports flexible input tracking by direct or resistor voltage division
    REFOUT supports ±10mA output current
    Supports Soft Start, UVLO, OCL protection
    Over temperature shutdown

Partial parameters




      Storage temperature range: -65°C to +150°C
      Operating temperature range: -55℃～+125℃
