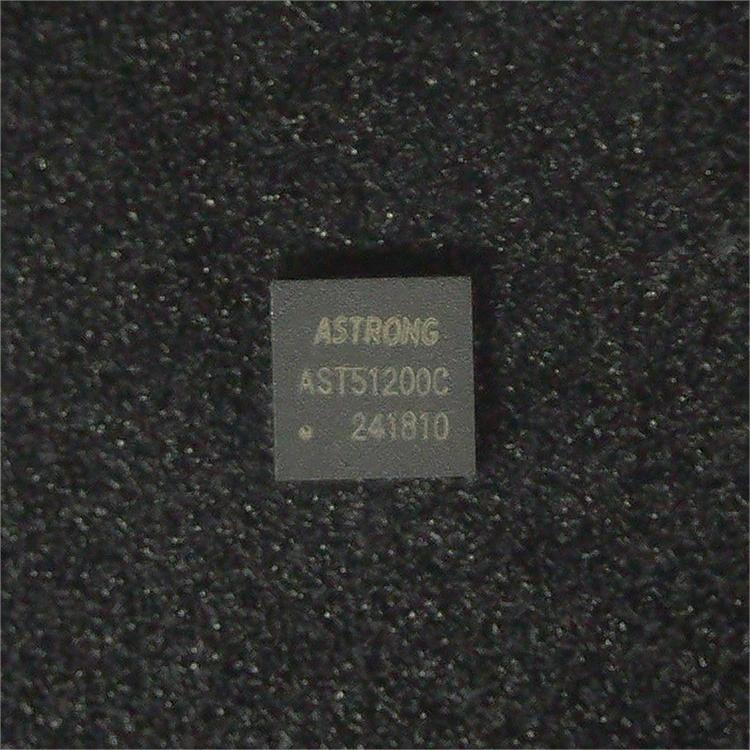

AST51200C Type DDR Termination Regulator
AST51200C Type DDR Termination Regulator
Features
-
Input Voltage: 2.5V rail voltage and 3.3V rail voltage supported
VNSOIN voltage range: 1.1V to 3.5V
Minimum output capacitance of only 20uF required
PGOOD signal for monitoring output status
Enable Function Options
REFIN input allows flexible tracking of the input via resistor divider
Remote sensing (VOSNS)
Built-in soft start, undervoltage protection
Thermal protection
Supports DDR, DDR2, DDR3, DDR3L, low power DDR3, DDR4 VVT applications
Partial parameters
-
Maximum junction temperature: 1050°C
Storage temperature range: -65°C to 150°C
Operating temperature range: -40°C to 185°C
