AST2401 6A/10A Synchronous Buck-Boost Converter


Features




    Input voltage: 4V~28V
    Maximum output voltage: 38V
    Low RDS (ON): 25mΩ
    Built-in soft start time 1.5ms
    Output over-current, short-circuit, over-voltage protection
    Thermal shutdown protection
    Selectable switching frequency: 250kHz/500kHz
    Selectable average inductance current limit: 6A/10A Programmable
    Programmable output current limit

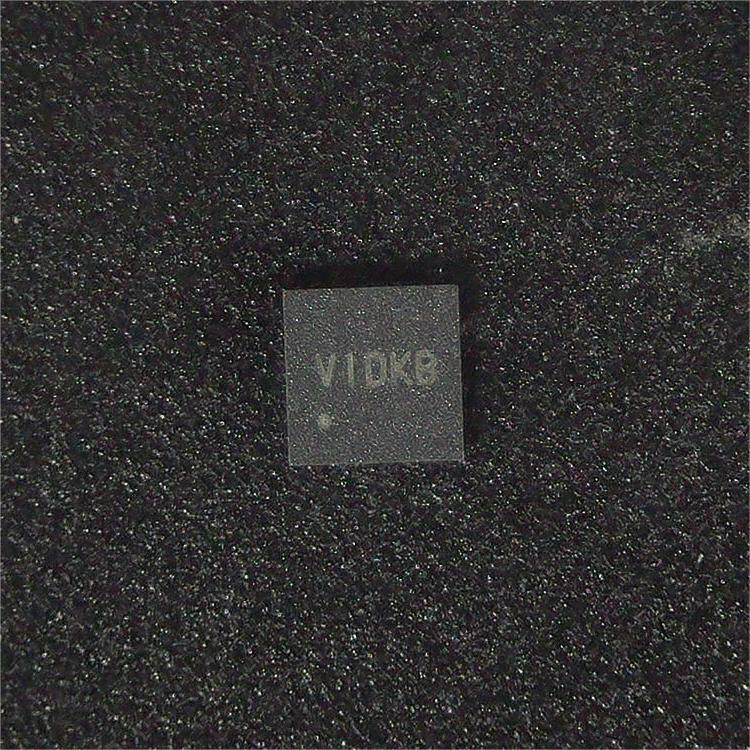

    Package: QFN4×4-32

Applications



      Power supply module


Partial parameters




      Operating Temperature Range: -55°C to 125°C
      Storage Temperature Range: -65℃～150℃
      Maximum junction temperature: +150℃
