Features




Output capacitors can be ceramic or tantalum capacitors
Maximum output current up to 1.5A
Input voltage range 2.5V to 26V
Fixed version output voltage: 1.5V, 1.8V, 2.5V, 3.3V, 5V
Adjustable output voltage: 1.21V to 26V
Differential Voltage Typical 300mV (1.5A)
Fast transient response
Battery reverse connection protection
Short circuit protection and over temperature protection

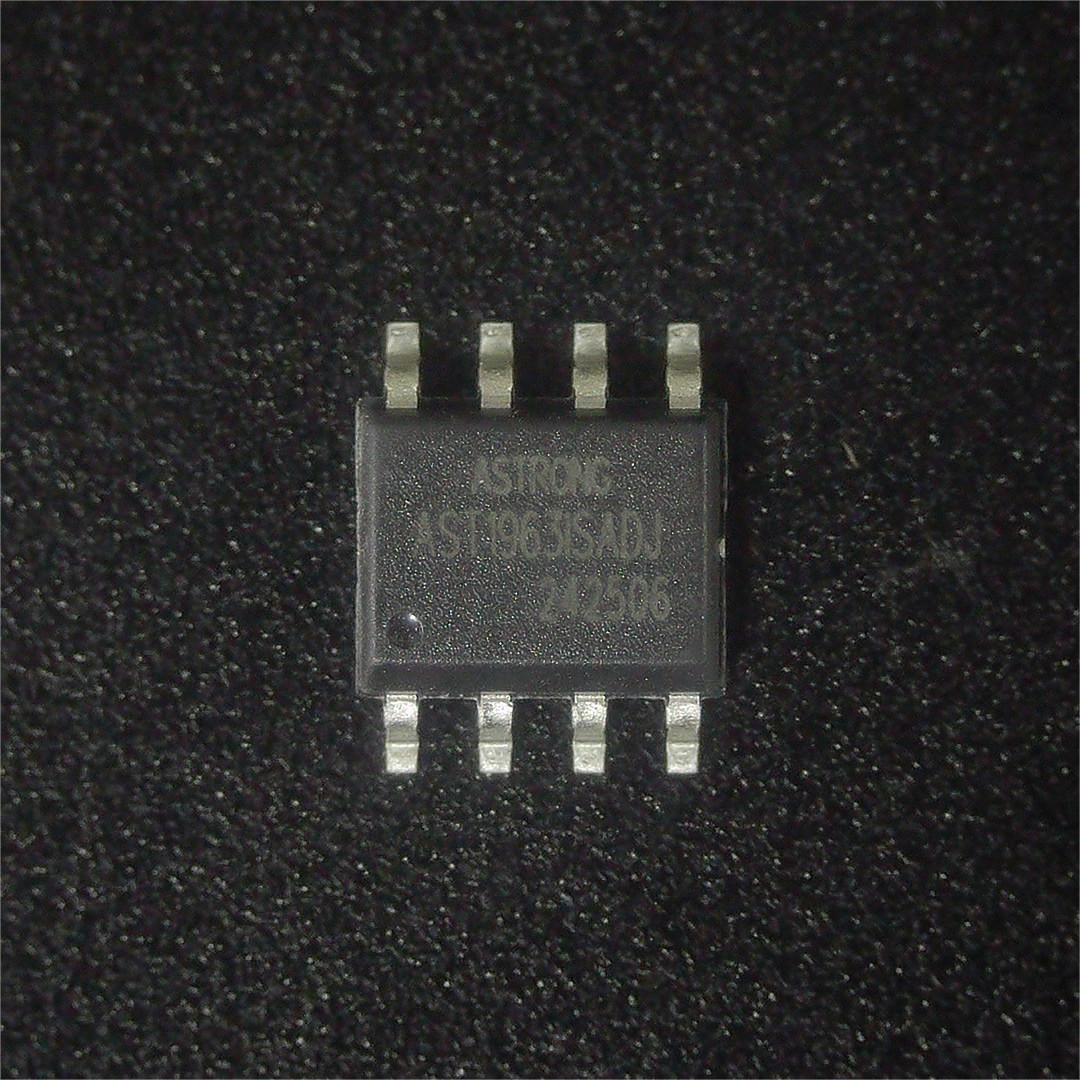

SOT223, SOP8, TO263 Plastic package
CLCC08 ceramic package

Applications



Computer, server, telecom equipment network, instrumentation and apparatus
Switching power supply back stage regulator

Partial parameters




Operating temperature range: -55 ℃ ~ +125 ℃
Storage temperature range：-65℃～+150℃
Maximum junction temperature: +155℃
