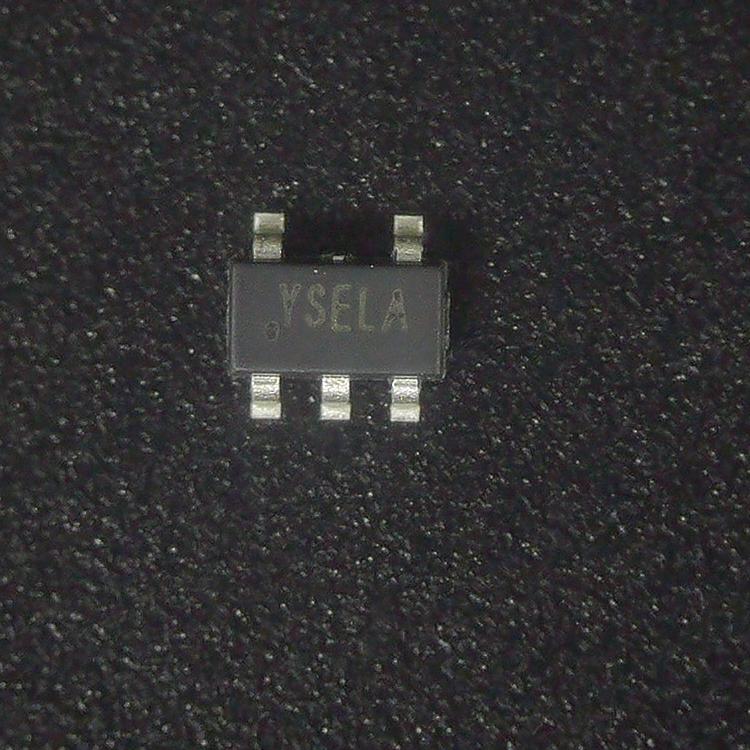

AST1103 4V~40V Input, 300mA Linear Regulator

首页 > Products > Power and Power Management >

AST1103 4V~40V Input, 300mA Linear Regulator


Features




    Wide input voltage range: 4V~40V
    Low dropout voltage: 300mV @ 300mA
    Quiescent current: 7μA
    Shutdown Current: 1μA
    Maximum load current: 300mA
    Reference Voltage Accuracy: ±2%
    Excellent load and linearity tuning ratio
    Enable control input
    Over-current protection
    Over temperature protection

Applications



      Aerospace: power supply for FPGAs, microprocessors, ASICs and other chips
      Low noise system: RF, VCO, receiver, op-amp, etc.
      Analogue circuit power supply
  •



Partial parameters




      Operating temperature range: -55°C to 125°C
      Storage temperature range: -65°C to 150°C
